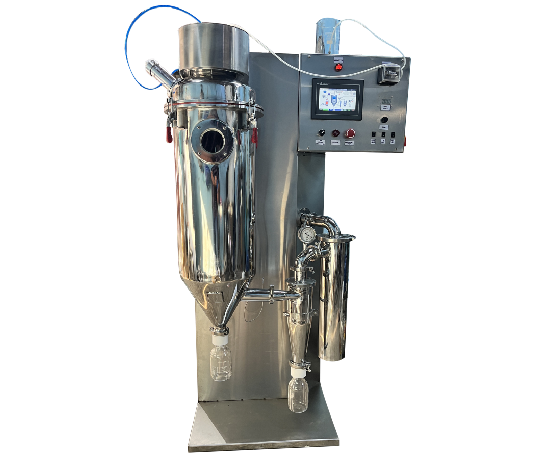

TOP MINI LABORATORY SS SPRAY DRYER
STS - 002

  1. You are here:
  2. Home
  3. Mini laboratory ss spray dryer STS - 002

The Mini Laboratory SS Spray Dryer comes with maximum safety, stability, and service &
life. The compatible design enables easy operations for aqueous or water-based solvents.


  • Powder Contact Part SS316L
  • Non Contact Part SS304

    • Complete unit will be in Stainless Steel GMP Standard


    Technical Specification of Mini Laboratory SS Spray Dryer STS - 002
     Evaporation capacity: 500 ml to 2000 ml / hr of
    Water EvaporationFeed Rate 1.6-2.3 Kg/Hr
    Output Product Rate @30 - 40% solid  100g - 700g/hr
    Suitable For :  Aqueous/ Water Based & Organic Solvent Feed Solution
    Spray & hot air flow :  Co-current
      Solution Heating power  : 7.5 KW, Three phase
      Max inlet temp. :    260° C; Accuracy ± 1° C
      Max outlet temp. :    180° C; Accuracy ± 1° C
      Min inlet temp. :    260° C; Accuracy ± 1° C
      Min outlet temp. :    75° C; Accuracy ± 1° C
      Nozzle type :   Two-fluid nozzle
      Nozzle diameter :  1.0 mm
      Typical yield :  40 - 70 %
      Operating conditions :  Open
     Power consumption :   Max. 31 amps
      Voltage :   200 - 230 V; 50/60 Hz
      Dimension (H x W x D): :   1550 x 600 x 800 (mm)
      Weight :   150 kg
      Blower Type :  High Vacuum Aspirator

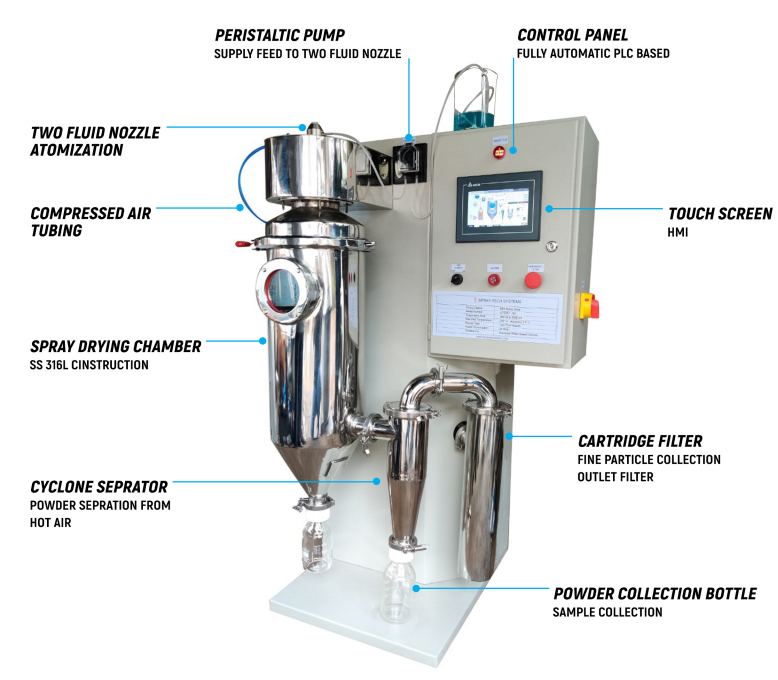

    Mini Laboratory Spray Dryer Automatic STS - 002


    Download

    Features

    • Reproducible powder production, exclusive unit for aqueous and solvent feeds
    • Highly suitable for encapsulation, spray drying, etc.
    • High-performance glassware cyclone, transparent process/ operation, high yields.
    • Swift drying process- up to 2 kg per hour, exclusive facility for rapidly optimizing the formulation
    • Compact design and flexible to move around, Self-contained and ready for immediate operation
    • Exclusive feature for simple touch screen operation, Pre-defined framework with recipe functions
    • USB data logger, compressive system with atomization Nozzle for precise and durable technology
    • Exclusive de-blocker needle with user-selectable frequency to assist in case clogging, cooling facility for nozzle
